Types of planes

Mixed

They transport passengers and goods. There are different types of mixed planes, with major or minor cargo capacity and different distance coverage range.

Cargo

Only for goods transportation. Unlike the mixed planes, this type of plane offers a bigger load volume than mixed planes.

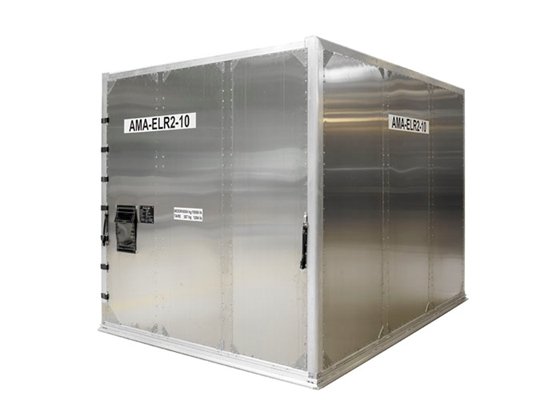

AMA Container

  • IATA Code: M1
  • Interior dimensions: Long: 1.560 mm | Anch: 1.535 mm | Alt: 1.140 mm | Volumen: 3,5 m3
  • Weight: Empty: 360 Kg | Maximum.: 6.804 Kg
  • Types of planes: 747F

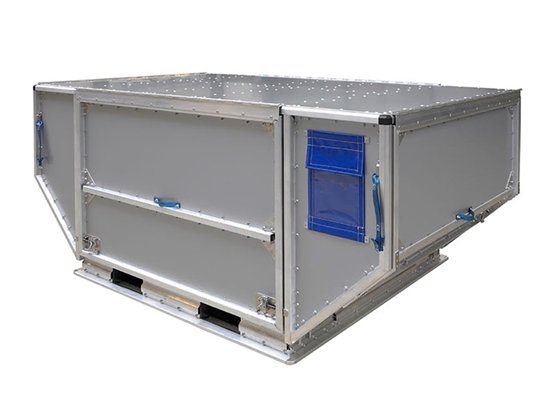

AKH Container

  • IATA Code: AKH
  • Interior dimensions: Lenght: 1.560 mm | Width: 1.535 mm | Height: 1.140 mm | Volume: 3,5 m3
  • Weight: 85 Kg | Max.: 1.135 Kg
  • Types of planes: A320/A321

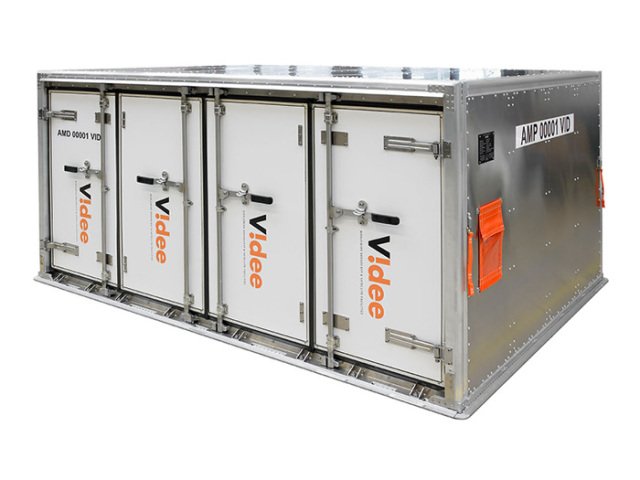

AAP / AA2 Container

  • IATA Code: LD9
  • Interior dimensions: Lenght: 3.175 mm | Width: 2.235 mm | Height: 1.625 mm | Volume: 9,8 m3
  • Weight: 230 Kg | Maximum: 4.625 Kg
  • Types of planes: B747F/B747/A340

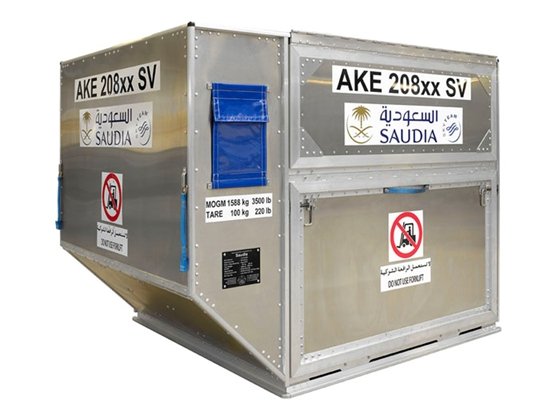

AKE Container

  • IATA Code: LD3
  • Interior dimensions: Lenght: 1.560 mm | Width: 1.535 mm | Height: 1.600 mm | Volume: 4,30 m3
  • Weight: Empty: 75 Kg | Max.: 1.587 Kg
  • Types of planes: A300/A310/B747/B777/A340

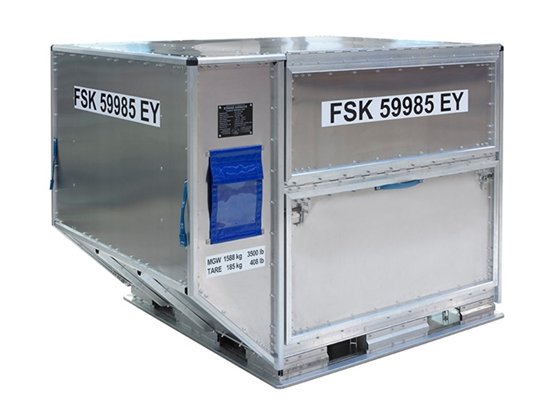

AKN Container

  • IATA Code: LD3
  • Interior dimensions: Lenght: 1.560 mm | Width: 1.535 mm | Height: 1.600 mm | Volume: 3,90 m3
  • Weight:120 Kg | Max.: 2.587 Kg
  • Types of planes: A340/A330

RKN Container

  • IATA Code: LD3
  • Interior dimensions: Lenght: 1.560 mm | Width: 1.530 mm | Height: 1.620 mm | Volume: 3 m3
  • Weight: 267 Kg | Max: 1.588 Kg
  • Types of planes: B747/A340A330/B777

Palet 95" x 196"

  • IATA Code: PGF / P7
  • Interior dimensions: Long: 4.980 mm | Width: 2,440 mm | Alt: 2.440 mm | Volume: 26 m3
  • Weight: Empty: 330 Kg | Maximum: 7,400 K (width of the fuselage) 10,670 Kg (length of the fuselage)
  • Types of planes: B747F

Palet 88" x 125"

  • IATA Code: PAG / P1
  • Interior dimensions: Long: 3.175 mm | Width: 2,235 mm | Alt: 2.440 mm | Volume: 11.50 m3
  • Weight: Empty: 125 Kg | Maximum: 6,800 Kg
  • Types of planes: B747F/B747/A340

Palet 95" x 196"

  • IATA Code: PMC/P6
  • Interior dimensions: Long: 3.175 mm | Width: 2,235 mm | Alt: 2.440 mm | Volume: 11.50 m3
  • Weight: Empty: 125 Kg | Maximum: 6,800 Kg
  • Types of planes: B747F/B747/A340

Palet 96" x 238,50"

  • IATA Code: M1
  • Interior dimensions: Long: 6.060 mm | Width: 2,440 mm | Alt: 2.440 mm | Volume: 32 m3
  • Weight: Empty: 515 Kg | Maximum: 13,600 Kg
  • Types of planes: B747F
